Blauberg Helix 140×60 2E

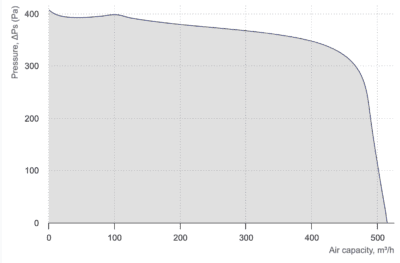

CAPACITY DIAGRAM

CHARACTERISTICS

MEASUREMENT UNIT	HELIX 140Х60 2E	PARAMETER
V	230	Voltage
Hz	50	Frequency
W	148	Power
A	0.64	Current
min-1	2820	RPM
l/s	143	Maximum air flow
m³/h	515	Maximum air flow
dBА	68	Sound pressure level at 3 m
°С	25- --- 45+	Max. operating temperature
'-	IP44	Motor IP rating
'-	IPX4	Ingress protection rating
'-	no	EC motor
'-	polymer-coated steel	Casing material
'-	yes	Outdoor mounting
-	no	Sound-insulated casing
'-	for rectangular air ducts, for round air ducts	Air duct
'-	centrifugal	Design
'-	Exhaust, Supply	Type
kg	3.7	Weight
'-	floor mounting	Mounting
'-	C	SEC class
'-	2018	ErP
