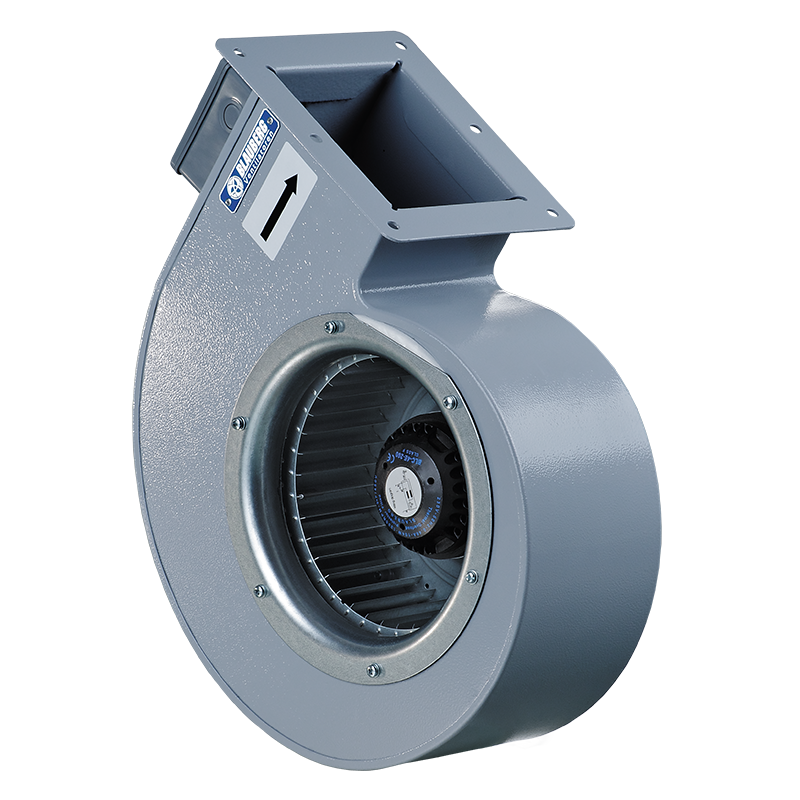

Blauberg Helix 200×102 4E

برند	blauberg

CAPACITY DIAGRAM

CHARACTERISTICS

MEASUREMENT UNIT	HELIX 200Х102 4Е	PARAMETER
V	230	Voltage
Hz	50	Frequency
W	280	Power
A	1.25	Current
min-1	1475	RPM
l/s	375	Maximum air flow
m³/h	1350	Maximum air flow
dBА	65	Sound pressure level at 3 m
°С	25-... 40+	Max. operating temperature
'-	IP44	Motor IP rating
'-	IPX4	Ingress protection rating
'-	no	EC motor
'-	polymer-coated steel	Casing material
'-	yes	Outdoor mounting
-	no	Sound-insulated casing
'-	for rectangular air ducts, for round air ducts	Air duct
'-	centrifugal	Design
'-	Exhaust, Supply	Type
kg	7.3	Weight
'-	floor mounting	Mounting
