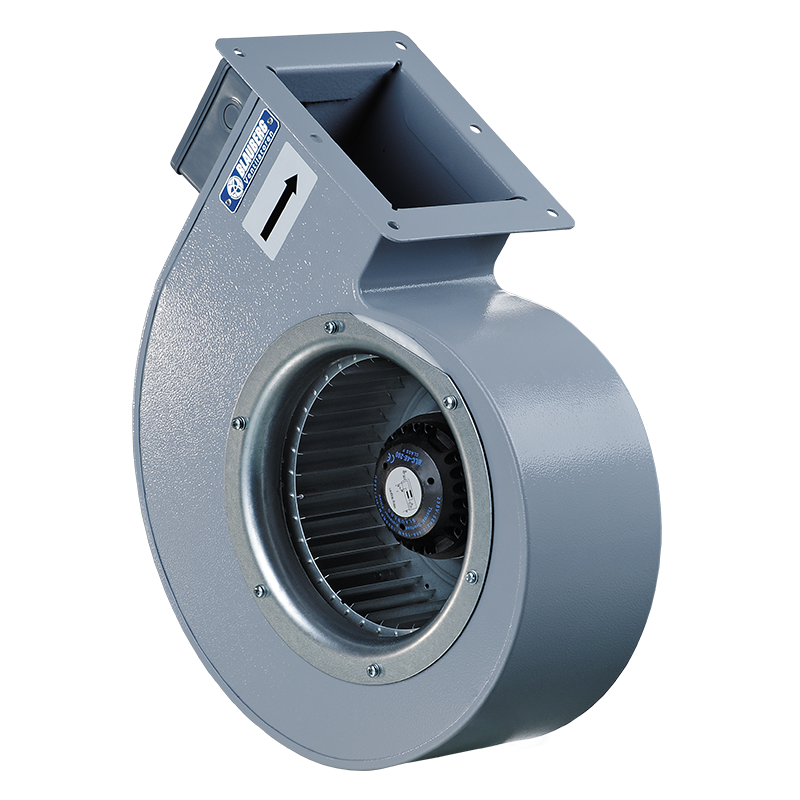

Blauberg Helix 250×140 4E

برند	blauberg

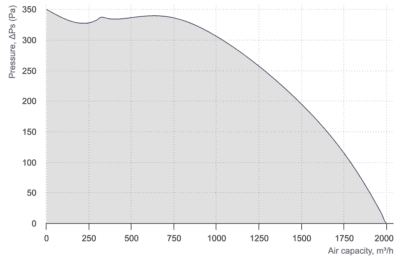

CAPACITY DIAGRAM

CHARACTERISTICS

MEASUREMENT UNIT	HELIX 250Х140 4E	PARAMETER
V	230	Voltage
Hz	50	Frequency
W	570	Power
A	2.48	Current
min-1	1310	RPM
l/s	556	Maximum air flow
m³/h	2000	Maximum air flow
dBА	60	Sound pressure level at 3 m
°С	40- 70+	Max. operating temperature
'-	IP44	Motor IP rating
'-	IPX4	Ingress protection rating
'-	no	EC motor
'-	polymer-coated steel	Casing material
'-	yes	Outdoor mounting
-	no	Sound-insulated casing
'-	for rectangular air ducts, for round air ducts	Air duct
'-	centrifugal	Design
'-	Exhaust, Supply	Type
kg	15.5	Weight
'-	floor mounting	Mounting
